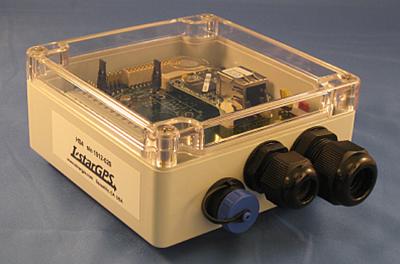

HS4 MkII- Primary GPS with Digital Barometer

and MotionSense

IstarGPS HS4 MkII is specifically designed for  large vessels and performance yachts seeking ultra fast speed and course data with a high performance receiver and the most versatile interfacing on the market.  It also contains a precision Barometer sensor!



IstarGPS uses the cutting edge Ublox-6 50 channel WAAS/EGNOS GPS chipset which produces speed and course data using MotionSense technology.  MotionSense provides extraordinarily responsive speed-over-ground and course-over-ground data by using Doppler of the satellite carrier wave.

Commercial   ●   Government   ●   Terrestrial   ●   Marine



IstarGPS   P.O. Box 863, Sausalito, CA  94966  USA   www.istargps.com     Info@istargps.com



Distributed by Farallon Electronics 2346 Marinship Way, Suite 101, Sausalito, CA 94965 USA

www.farallon.us    istargps@farallon.us

+1 415-331-1924/ph       +1 415-331-2063/fax

© ESCO 2011       Information subject to change without  notice.

NEWS: Man Overboard feature added. Trigger from an external button or the web browser user interface!

Screen Shots



IstarGPS is part of a new generation of high correlator super sensitive receivers.  -162dBm is the spec — this means excellent reception in the worst conditions (or antenna locations).



IstarGPS HS4 MkII is the heart of your position data distribution. With four independent NMEA output ports and a USB port, there is no need for external amplifiers - drive 12 or more listeners directly at bauds to 115k.  IstarGPS also broadcasts NMEA data via Ethernet UDP—up to 40 ports!  Compatible PC applications no longer need NMEA data on a USB or serial port!
