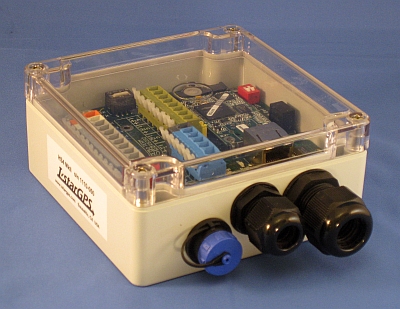

HSM104 - Primary GPS with Digital Barometer

and MotionSense

IstarGPS provides features sought by large vessels and performance yachts - ultra fast speed and heading data, a high performance receiver and the most versatile interfacing capabilities on the market.  It also includes a precision Barometer sensor!



IstarGPS uses the cutting edge Atmel Antaris4 16 channel WAAS/EGNOS GPS chipset which produces speed and course data using MotionSense technology.  Previously unavailable in consumer products, MotionSense provides extraordinarily responsive speed-over-ground and course-over-ground data.



IstarGPS is one of the most sensitive receivers on the market.  -158dBm is the spec, up to 10 times better than competing GPS receivers.  This means excellent reception in the worst conditions (or antenna locations).

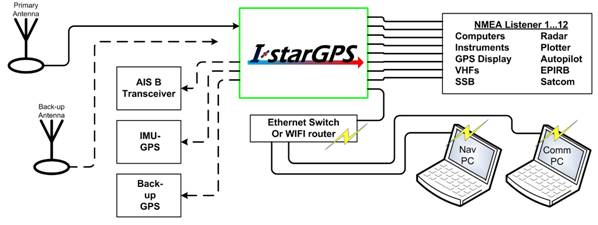

IstarGPS HSM-104 becomes the heart of your position data distribution. With four independent NMEA output ports, there is no need for external amplifiers - drive 12 or more listeners.  IstarGPS also broadcasts NMEA data via the Ethernet UDP protocol!  By using UDP, compatible PC applications no longer need NMEA data on a USB or serial port!

Commercial   ●   Government   ●   Terrestrial   ●   Marine

Antenna connections w/ optional antenna sharing



IstarGPS   P.O. Box 863, Sausalito, CA  94966  USA   www.istargps.com     Info@istargps.com



Distributed by Farallon Electronics 2346 Marinship Way, Suite 101, Sausalito, CA 94965 USA

www.farallon.us    istargps@farallon.us

+1 415-331-1924/ph       +1 415-331-2063/fax

© ESCO 2008       Information subject to change without  notice.

NEWS: HSM-104 production is sold out and will be replaced with the HS4 in Spring 2010.  The HS4 is 50% smaller and can upgrade to a new 50 channel GPS core.

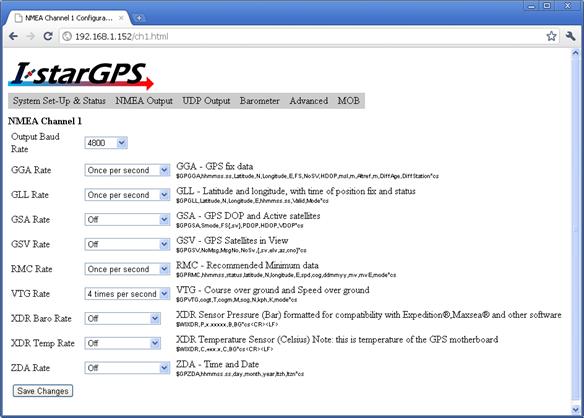

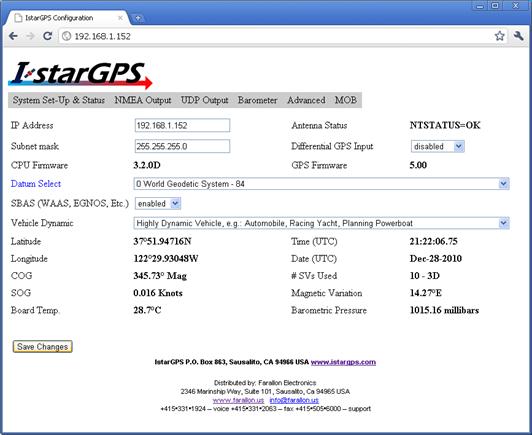

Screen Shots
